Troy Bilt TB30R Won’t Start? Full No Click No Start Diagnosis & Fix For 30" Rear Engine Riding Mower

Thank you for watching!! If we helped you out and you want to show your support - LIKE, SUBSCRIBE or give us a shout out below. If you saw something you didn't like leave your comment below as well, these things help us get better!

To see our recommended tools and products visit our Amazon shop at https://www.amazon.com/shop/individualizedrepair

Interested in starting your own small engine repair business? Check out my other channel, where I share tips on building a repair company from scratch with minimal investment @SmallEngineEdge1

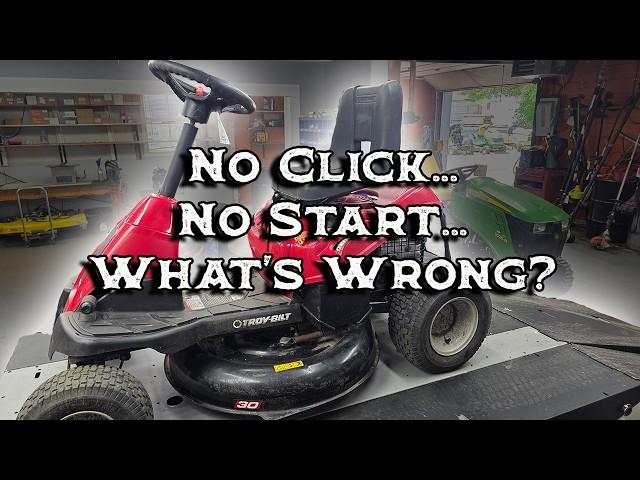

In this video, we troubleshoot a common issue on the Troy Bilt TB30R (Model 13A726JD066) rear engine riding mower — it won’t start, won’t crank, and doesn’t make any noise when turning the key

Is your Troy Bilt TB 30R or similar 30" rear engine riding mower completely dead when you turn the key?

No click, no crank, no sound, no start? In this video, we go through a full step-by-step diagnosis to figure out why this mower won’t start — and show how to fix it.

If you’re experiencing a dead mower with no response, this guide will walk you through the entire diagnostic process to find the problem and get it fixed.

We begin by reviewing all the required starting conditions: ensuring the parking brake is fully engaged, the blade PTO lever is disengaged, and the side discharge chute or mulch cover is properly installed — which is a safety interlock on these mowers.

When the mower still won't start after those are confirmed we move into a full electrical system test

We go over:

How to test and verify your battery voltage
Fuse location and how to test it
Safety switch locations (seat switch, brake switch, PTO switch, chute switch) and how to test them
Voltage testing at the starter solenoid
Hot to test the starter and starter solenoid & diagnose them
Checking for corroded, loose, or chewed wires

Understanding the seat interlock “anti-tamper” system on 4-prong seat switches and how to fix the issue if your mower dies when you release the brake because of this failure

We also go over how to properly test the ignition switch — and ultimately discover the problem

This testing process applies not only to the TB30R, but also to many MTD-built machines, including Craftsman Cub Cadet, Bolens, Murray, Yard Machines, Yard-Man, and other private label riding mowers using the same electrical system.

If your mower has no power, no click, or dies when you release the brake, this video is packed with useful tips to help you pinpoint the issue.

Parts Used:

925-06119C Switch https://amzn.to/4kYFYU5

Tools Used:

GB70 Jump Starter https://amzn.to/4mZ30LK
Volt Meter https://amzn.to/444bDfu
Clip On Work/Video Light https://amzn.to/3XPeqqE

Video equipment:

GoPro Hero 13 https://amzn.to/4m3kZQE

Microphone
DJI Mini Mic 3 https://amzn.to/4bmNROT

Don’t forget to like, comment, and subscribe for more DIY mower repair videos, small engine troubleshooting tips, and maintenance tutorials to keep your equipment running strong!


Includes models TB30, TB30B, TB30R, R110, RER1000, CC30H and MANY others

If your engine will not crank see the video at https://youtu.be/d4RlTIOGVOM
If you engine will crank but will not start and is not the issue listed in the video you want the video at https://youtu.be/JQ9apzBtZEA
If your belt will not stay on or the blade will not stop see the video at https://youtu.be/fTrsEdoKFtY
If you need to replace the drive belt see the video at https://youtu.be/5bYFk8n0ruw
If you need to repair the steering see the video at https://youtu.be/Bej81gq1vCs
